DRG:HYBRiD-XL®
Click to enlarge

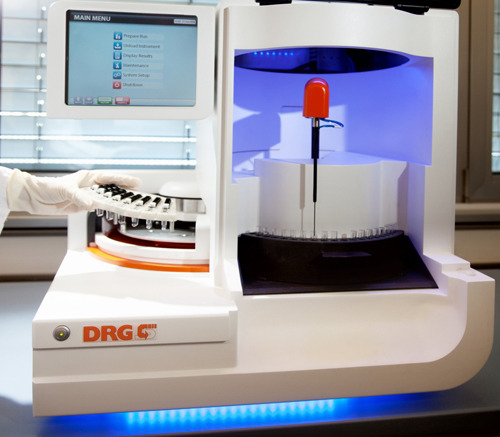

Fully automated Continuous Access Analyzer for Immunoassays and Clinical Chemistry

Innovation
DRG introduces the totally newly designed DRG:HYBRiD-XL® Analyzer.
This innovative and unique technology allows , for the first time, the simultaneous measurement of immunoassays and clinical chemistry parameters including turbidimetric tests in one sample.
The comprehensive assay menu will include routine and niche parameters

Specifications



Test Principle:
  • Enzym Immunoassys
  • Clinical Chemistry
  • Immunoturbidimetry
Samples/Cartridges:
  • Up to 20 samples/run
  • (12 primary tubes or 20 secondary tubes)
  • Random access possible
  • STAT possible
  • Reagents on board (cartridge)
  • (ready to use)
  • Barcoded reading of samples
  • and reagents
  • Serum, Plasma, Urine or Saliva samples
  • Sample dilution up to 1:1000
Calibration:
  • Barcoded Master Curve
  • 2 point recalibration
  • Long Stability

Efficiency:
  • First results after 10 minutes
  • Up to 80 tests/hour (2 runs)
  • Long walk away times
  • Short hands-on times
  • Benchtop Analyzer (60,8 x 63,5 x 58,6 cm high)
  • Only 2 system-reagents (Wash/Needle cleaning)
  • Clot detection
  • Liquid level detection
  • Variable assay-sizes (20, 40, 100 tests)
Handling/Interface:
  • Color Monitor, Touchscreen (8,5 inch.)
  • Smart user guidance
  • Bi-directional Interface (ASTM)
